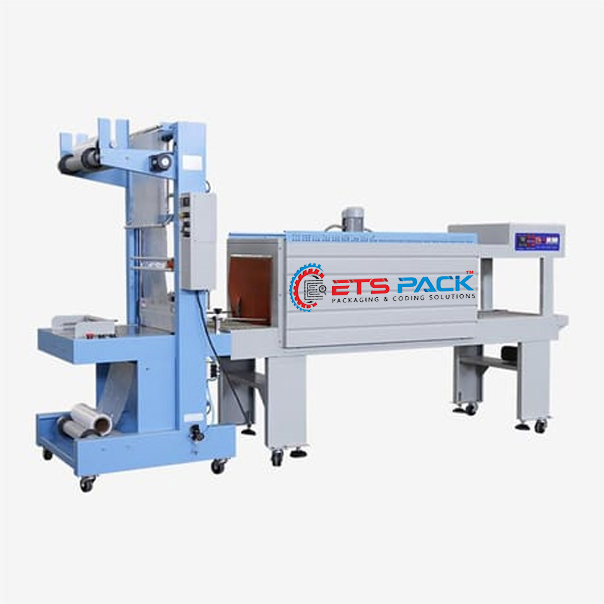

Websealer Offline

Model No: TF-6540SA
Voltage (V/Hz) AC 220/50 110/607
Air Pressure Required (kg/cm³) 5-7
Power (kw) 1.5
Max. Packing Size (L×W×H) (mm) 550×400×380
Max. Sealing Length (mm) 650
External Dimension (L×W×H) (mm) 925×1040×1920
Net Weight (kg) 300
Model No: BS-5540M
Voltage (V/Hz) 380/50(3P) 220/60(3P)
Power(kw) 23
Loading (kg) 40
Conveying Speed (m/min) 0~8
Tunnel Size(L×W×H)(mm) 1450×550×400
External Dimensions(L×W×H)(mm) 2550×850×1600
Net Weight (kg) 300

Description

BS-55 series shrink tunnel is designed in hot-wind & upper-cyclone structure intelligence temperature control and AC variable speed regulation. There are two optional conveyors, including Teflon belt type and roller type.

  • Intelligence temperature control
  • Strong turbine motor.
  • Stainless steel mesh type conveyor and roller type conveyor are available.
  • Power saving and high efficiency (over 15% power saving)
  • BS-55 series shrink tunnel is applied to heat shrinkable film such as PVC, PE etc.
  • BS-55 series shrink tunnel is suitable for packing a single large object or combined object consisting of several small articles.
  • To use in the place where there is enough space, such as factory, and warehouse, etc.
