Horizontal Heavy Duty Double Vacuum Packaging Machine

Model No: DC-650/800
SEALING LENGTH 650/800mm
SEALING WIDTH 10mm
SEALING BARS 2nos on each side

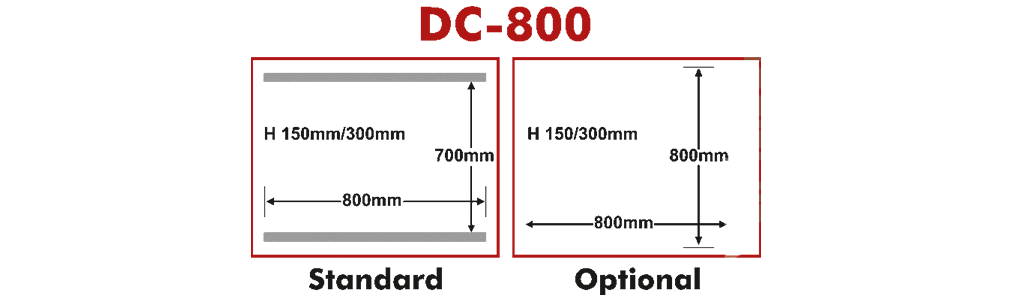

CHAMBER SIZE AS PER MODEL
MACHINE CYCLE TIME 20-40SEC
CONTROLLER TIMER BASED/PLC BASED
CONTROL CABLES RR CABLES
SWITCHGEAR Schneider
POWER SUPPLY 3 Phase 415v 50 Hz
POWER KW 3,5 kw
MACHINE WEIGHT 350/500KG
PUMP CAPACITY 40-300 m3/hr. (INDIAN MAKE)
MACHINE DIMENSIONS L1270 X W780 X H980mm
MACHINE MOC SS 304
  • Heavy duty double chamber vacuum packing machine model to save loading – unloading time.
  • Easy to move with 4 nos. castors wheels.
  • Design suitable for high productivity with high speed vacuum pump.
  • Rema Make timer-based control panel for easy adjustment of vacuum time, sealing time, etc.
  • Long lasting 10 mm heating elements for accurate sealing result.
  • Stainless steel body, no sharp edges, use cast aluminium & other nonferrous materials to safe rust issue and easy cleaning.
  • Insert gas flushing unit.
  • Vacuum & gas control by sensor for accurate level.
  • BUSCH or Becker (German Make) Vacuum Pump.
  • Mold and Formers as per require pack size.
