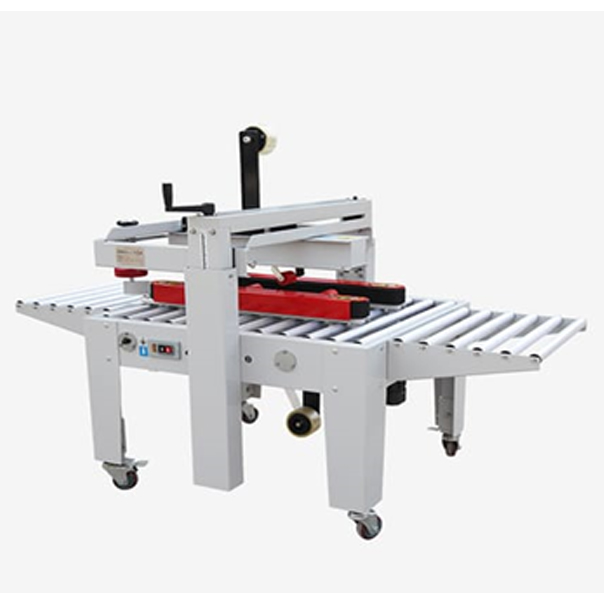

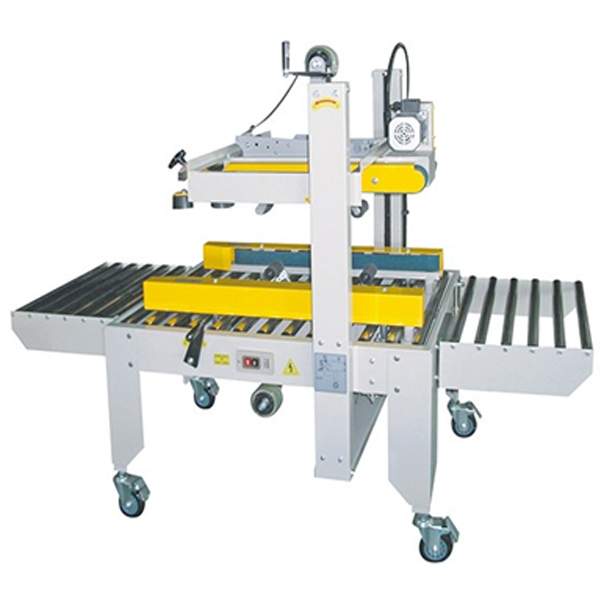

Semi Automatic Side Drive Carton Taping Machine

Model No: FXJ-5050
Voltage (V/Hz) AC 220/50
Power (W) 200
Max. Carton Size (W×H)(mm) 500×500
Min. Carton Size (W×H)(mm) 80×90
Speed (m/min) 20 m/min (30 cartons/min)
Adhesive Tape Materials BOPP, PVCadhesive tape, water-free adhesive tape
Height of Table (mm) 580-780
Width of Adhesive Tape (mm) 36, 48
External Dimensions (L×W× H)(mm) 1750×880×(1300-1500)
Net Weight (kg) 115
Max. Conveyor Load(kg) 30
  • FXJ series is designed to seal carton by applying adhesive tape
  • Cost effective, High speed
  • Easy size changeovers
  • For integration into production line or as stand alone machine
  • It's widely used in the fields of domestic electrical appliance, foodstuffs, general merchandise, medicine and chemical industry
  • Conveyor belt tension and tape tension are adjustable to meet the needs of soft/hard cartons
  • Printed tape can be used to improve enterprise image
  • FXJ-A series: side drive belts, upper&bottom tape head, ideally suited for narrow cartons
