Door Type Vertical Double Chamber Vacuum Packing Machine

Model No: VDC 550/700

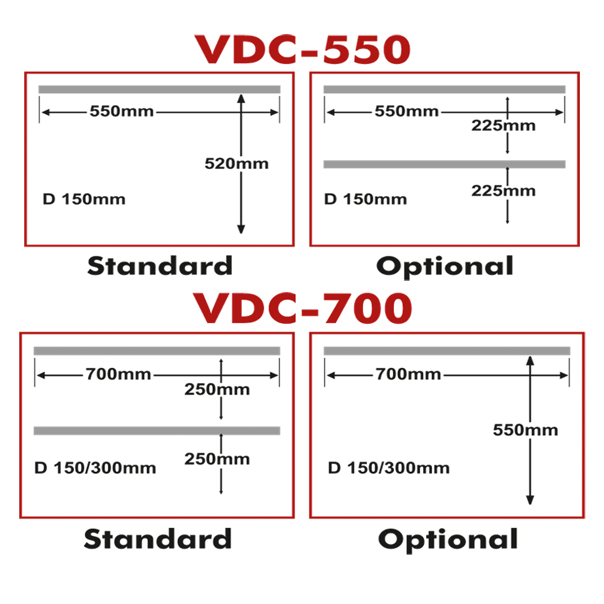

SEALING LENGTH 550/700mm
SEALING WIDTH 10mm
SEALING BARS 1no (2nos OPTIONAL)
CHAMBER SIZE AS PER MODEL
MACHINE CYCLE TIME 20-40SEC
CONTROLLER TIMER BASED
CONTROL CABLES RR CABLES
SWITCHGEAR Schneider
POWER SUPPLY 3 Phase 415v 50 Hz
POWER KW 2-3.5 kw
MACHINE WEIGHT 350KG
PUMP CAPACITY 40 m3/hr. (INDIAN MAKE)
MACHINE DIMENSIONS L1250 X W500 X H1500mm
MACHINE MOC SS 304
  • Heavy duty vertical double chamber vacuum packing machine model to save loading – unloading time for high productivity
  • Suitable for Flour, Semi liquid, Pulses, spices, herbal extracts powser, Dry fruits and any kind of powder & granules materials.
  • Adjustable product platform suitable Upto 25 KG product packing
  • Rema Make timer based control panel for easy adjustment of vacuum time, sealing time, etc.
  • Stainless steel body, no sharp edges, use cast aluminium & other nonferrous materials to safe rust issue and easy cleaning.
  • Insert gas flushing unit.
  • PLC Based Control Panel with touch LCD display for adjustment of accurate vacuum & gas pressure.
  • Vacuum & gas control by sensor for accurate level.
  • BUSCH or BECKER (German Make) Vacuum Pump.
  • Mold and Formers as per require packing size
