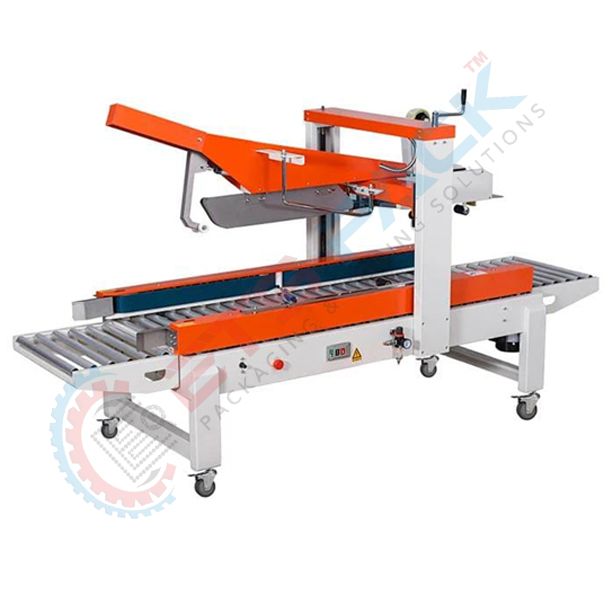

Automatic Folding Carton Taping Machine

Model No: FXJ-5050Z
Voltage (V/Hz) AC 220/50
Power (W) 260
Air Compressor (Mpa) 0.4-0.6
Speed (m/min) 22 m/min (25 cartons/min)
Max. Carton Size (W×H) (mm) 600×500×500
Min. Carton Size (W×H) (mm) 180×160×180
Adhesive Tape Used BOPP, PVC adhesive tape, water-free adhesive tape
Height of Table (mm) 600-750
Width of Adhesive Tape (mm) 48, 60, 76 (optional)
External Dimensions (L×W×H) (mm) 1830×920×(1450-1600)
Net Weight (kg) 250
Max. Conveyor Load(kg) 30
  • FXJ series is designed to seal carton by applying adhesive tape
  • Cost effective, High speed
  • Easy size changeovers
  • For integration into production line or as stand alone machine
  • Conveyor belt tension and tape tension are adjustable to meet the needs of soft/hard cartons
  • The machine folds front/side/rear flaps at high speed
  • Two-side drive belts
  • Designed with upper & bottom tape heads or just upper tape head that are ideal for sealing uniform cartons continuously
  • Model FXJ-Z: easy loading and unloading due to the brackets installed on the two ends of the machine
