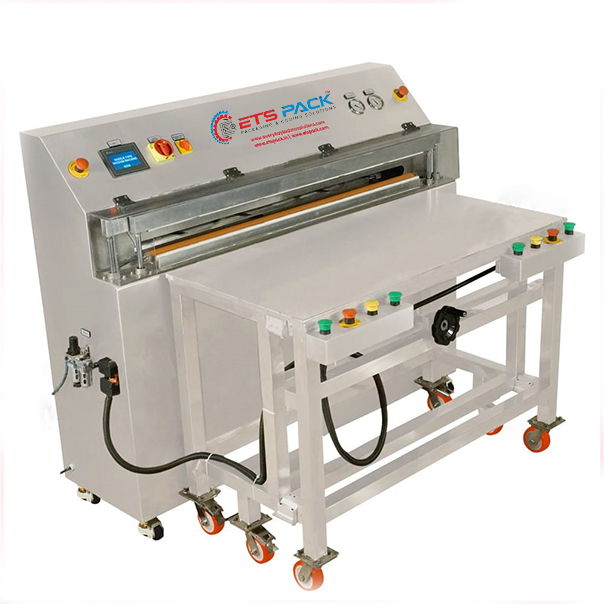

Heavy Duty Horizontal Nozzle Type Chamber Less Vacuum Packing Machine

Model No: NVH-600

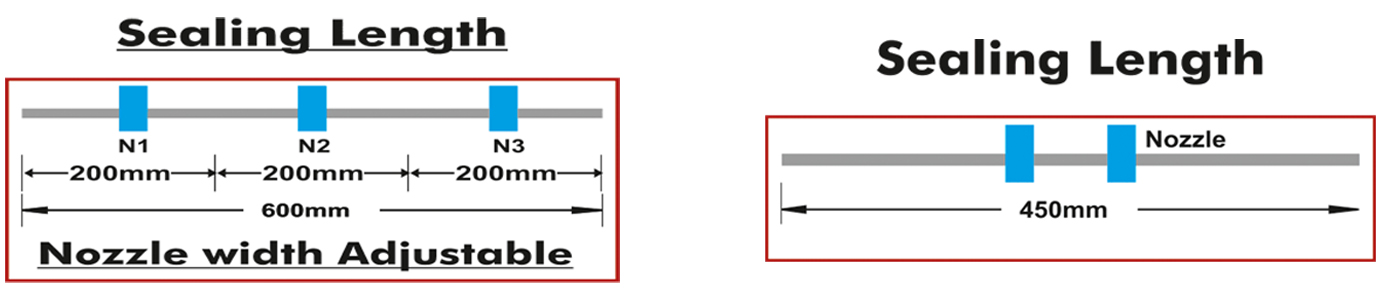

SEALING LENGTH 600mm
SEALING WIDTH 10mm
SEALING BARS 1no
WORKING TABLE AS PER PRODUCT
MACHINE CYCLE TIME 20-40SEC
NOZZLE VACUUM & GAS 1-3nos
CONTROLLER PLC BASED
CONTROL CABLES RR CABLES
SWITCHGEAR Schneider
POWER SUPPLY 1 Phase 230v 50 Hz
POWER KW 1.5kw
PNEUMATIC SYSTEM JANATICS (5-6KG AIR REQUIRED)
PUMP CAPACITY 16 m3/hr. (INDIAN MAKE)
MACHINE DIMENSIONS L800 X W900 X H1300mm
MACHINE MOC SS 304
  • Heavy duty nozzle type chamber less vacuum sealer is widely used for packaging different cofiou products, electronics, and hardware, textiles and medicals instruments.
  • Nozzle type machines suitable for pre made pouch.
  • Specially design for Modified atmosphere packaging.
  • Multi-Stage: Up to two vacuum and two gas cycles, to achieve lower residual oxygen level
  • Vacuum Relief Valve: Sets a maximum vacuum level to prevent product damage.
  • Suitable for pharmaceuticals API bulk drum packing.
  • PLC Based advance control panel with touch LCD display for adjustment of accurate vacuum & gas pressure.
  • Machine MOC MS Powder Coated
