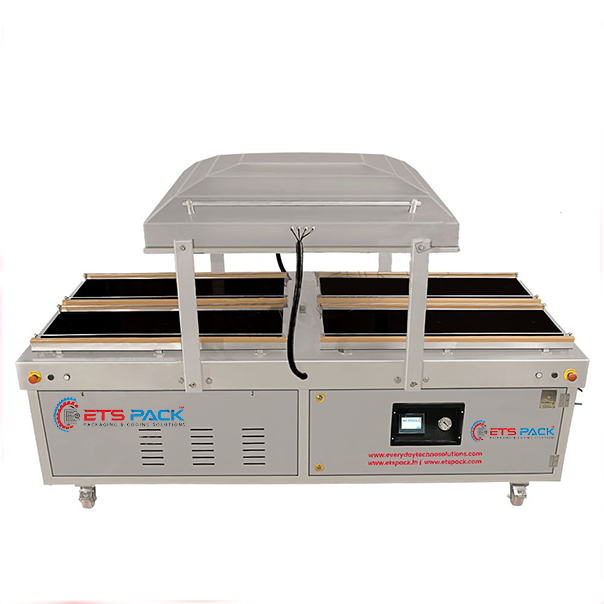

Horizontal Heavy Duty Double Vacuum Packaging Machine

Model No: DC 900A/1200A
SEALING LENGTH 900/1200mm
SEALING WIDTH 10mm
SEALING BARS 2nos on each side

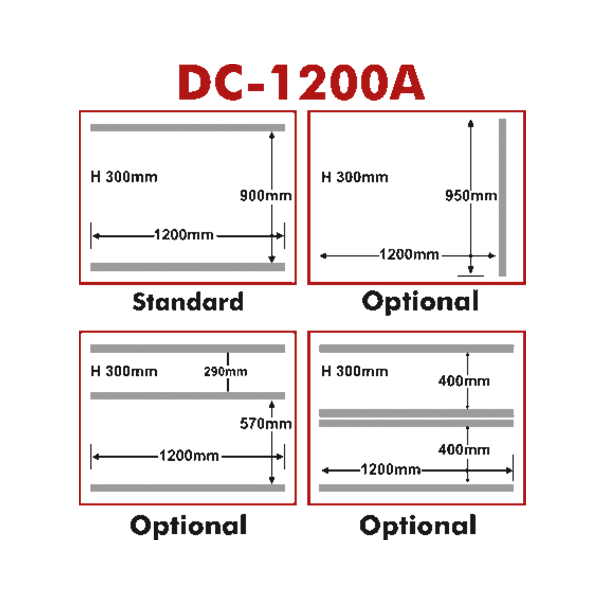

CHAMBER SIZE AS PER MODEL
MACHINE CYCLE TIME 20-40SEC
CONTROLLER PLC BASED
CONTROL CABLES RR CABLES
SWITCHGEAR Schneider
POWER SUPPLY 3 Phase 415v 50 Hz
POWER KW 10 kw
MACHINE WEIGHT 850/1200KG
PUMP CAPACITY 150-500 m3/hr.
MACHINE DIMENSIONS L2290 X W1225 X H1150mm
MACHINE MOC SS 304
  • Heavy duty automatic lid operated double chamber vacuum packing machine model to save loading- unloading time
  • PLC Based advance control panel with touch LCD display for adjustment of accurate vacuum & gas pressure.
  • Design suitable for high productivity with high speed vacuum pump.
  • Suitable for heavy micron & retort pouch accurate sealing.
  • Easy to move with 4 nos. castors wheels.
  • Long lasting 10 mm heating elements for accurate sealing result.
  • Stainless steel body, no sharp edges, use cast aluminium & other nonferrous materials to safe rust issue and easy cleaning.
  • Vacuum & gas control by sensor for accurate level. BUSCH or BECKER (German Make) Vacuum Pump.
  • BUSCH or BECKER (German Make) Vacuum Pump.
