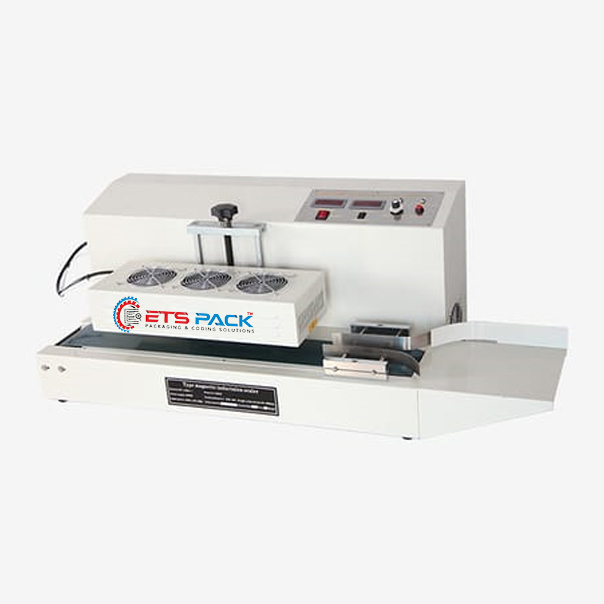

Continuous Induction Sealer

  • The sealing range of the machine is adjustable, and with either large or small sealing surface, and get the ideal sealing quality and efficiency.
  • In case of the equipment failure of the machine in the course of work, the conveyor automatically stops working, to realize the function of isolating the products sealed and those unsealed.
  • The conveyor belt adopts electronic stepless speed adustment, and during the sealing process can based on voltage and current changes make speed adjustment in a timely manner, in order to achieve the best sealing quality.
  • In this machine,the height of sensor head adopts eletric adjustment,capable of sealing the objects within the range of 40-300mmin height.
  • It has supply and voltage meter and sealing ameter, so that is can make timely adjustments when voltage and current fails to meet normal job requirements, to ensure the sealing quality.
Model LGYF-2000AX
Power (V/Hz) AC 220/50
Sealing Power (W) 2000W
Sealing Diameter(mm) Φ20-φ130(The best diameter is Φ30-φ120)
Bottle Height (mm) 40-300
Sealing Speed (m/ Min) 2-12
Load of conveyor(kg) ≤20
Housing material Paint
Housing protection grade IP2I
External Dimensions (L×W×H) (mm) 1150×600×400
Weight (kg) 40/td>
