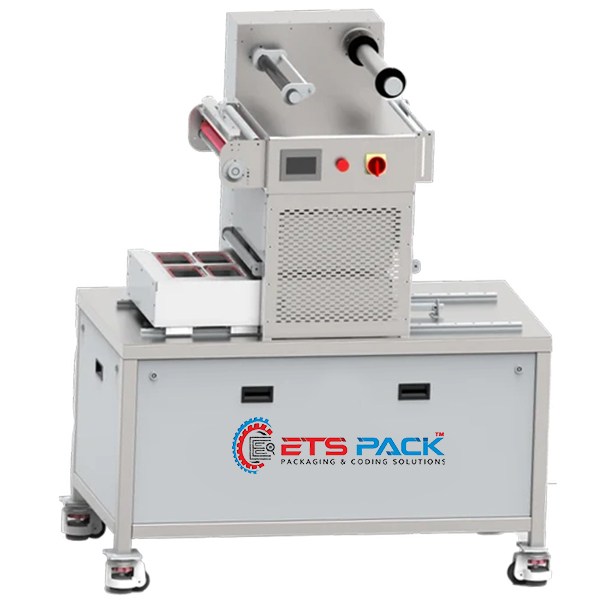

Shuttle Type Semi-Automatic MAP (Vacuum + Gas) Tray/Cup Sealing Machine

Model No: REMA-7878-MAP-SHUTTLE
Down Chamber Height: 120mm
Film Max.Size (W X D): 380 X 350 mm* (Can be customize)
No.of Tray Can Feed At a Time: 250 Gram-4 Nos, 500GM-2Nos, 1KG-1Nos
Control Panel (PLC/HMI): Make: Delta
Electric Supply: 415 - 3Phase-50 HZ, 3 KW
Vacuum Pump: Make: Becker German
Vacuum Required: 99.50%
Cycle Per Minute: 3 to 4 Cycle
Operation on Tray: Vacuum + Gas + Sealing + Cuting
Pneumatic Parts: SMC or Janatics
Machine Construction: Aluminum or Stainless Steel 304
Machine Weight: 250 KG*
Machine Dim (L X W X H): 1300 mm X 700 mm X 1600 mm
Gas Flush: Yes
Compressor Air Requirements: 6-7 KG Pressure Require (In clients Scope)
  • Semi Auto Shuttle Type High Quality MAP Tray Sealing Machine Suitable for standard trays & Cups.
  • Save Cycle time to Load & unload of the tray operation.
  • Products can be pack Sweets/Desserts, Dry fruits, Cheese, Fresh Fruits & Vegetables, Bakery, Snacks, Meat/Sea Foods, Ready to Eat Foods, Sauces, Confectionery-Jellies Etc.
  • Accurate Vacuum & Gas Flushing Systems
  • Stainless Steel Body, cast aluminium & non-ferrous material to safe rust issues and easy cleaning.
  • Longer shelf life of food due to extremely low oxygen residual (< 0,5%)
  • Fast exchangeable tray mould (< 3 minutes)
  • Short cycle time (2 Cycles/Min.)
  • Touchscreen for easy setting of recipes
  • Great presentation of your products
  • Eye Mark Sensors For Printed Roll.
  • Can Be Customize According to Customers Requirements.
  • Bottom Chamber Height Can Be Increased Up to 150 mm for Bigger Tray Heights.
