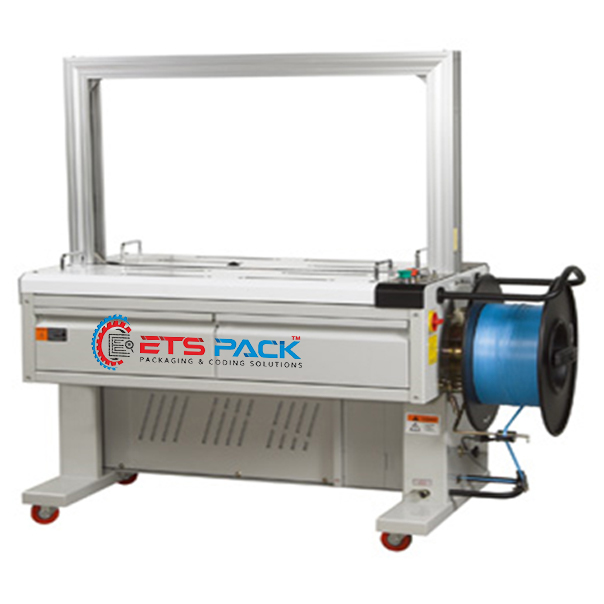

Automatic Strapping Machine

MAKE CHALI(TAIWAN)
MODEL JN-85E
Arch Size 850W x 600H mm (Standard)
Power Supply 220/380V 50/60Hz 3Ph
Strap Cycle Speed 26 cycles/ 50Hz per Min
Tension Strength Max. 70 Kg
Strap Width 6~15.5mm
Sealing Method Heat Sealing

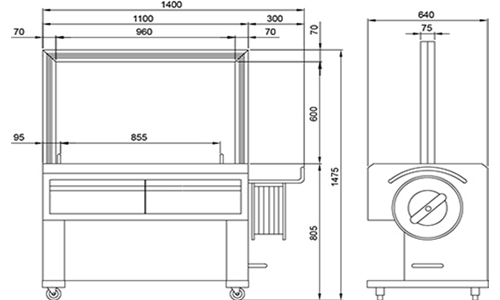

Dimensions 1400W x 640D x 1475H mm
Table Height 805mm
Machine Weight 220kgs
Gross Weight 265kgs
  • Modular designed Aluminum alloy arch, easy to assemble and disassemble.
  • Auto strap positioning and retry feeding functions enable operating of humanity.
  • Convenient operating modes with panel, ball switch and foot pedal switch.
  • Internal electricity is 24V accessing, prevent operators from shocking.
  • with CKD frame and powder painting on frame.
  • Change color on iron arch cover, front doors & frame is available. (Optional)
