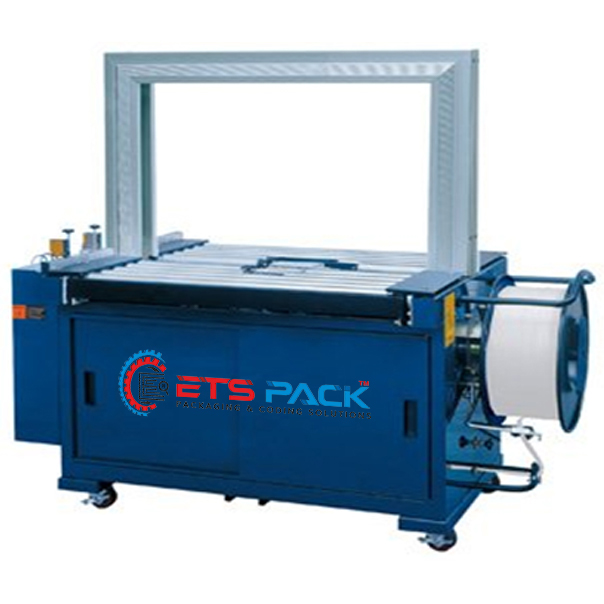

Fully Automatic Machine

MAKE CHALI(TAIWAN)
MODEL JN-85PRU

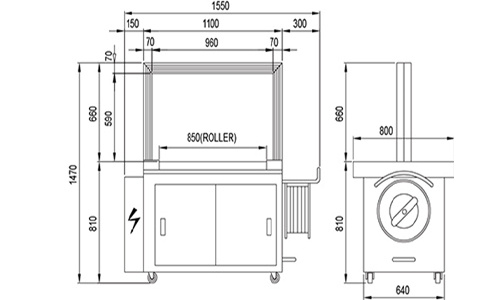

Arch Size 850W x 600H mm (Standard)
Power Supply 220/380V 50/60Hz 3Ph
Strap Cycle Speed 2.5 Sec/cycle
Tension StrengthMax. 70kgs
Strap Width 9/12/15.5mm
Sealing Method Heat Sealing
Dimensions 1550W x 800D x 1470H mm
Table Height 810mm
Package Size 300~820W , 30~560H mm
Machine Weight 330kgs
Gross Weight 430kgs
Power Roller Speed 15M/50Hz Per Min.
  • Standardized power roller table model with 2 sets of photocell JN-85PRU-2HT.
  • Optional straps No. is available for 1, 2 or no strapping on the packages. More straps application is also available as an option before order is fixed.
  • This model can incorporate with input and output conveyors as a strapping system. The control system of conveyors can be connected with this model.
  • Affordable choice for every budget
  • Equipped with Table Roller Cover.
