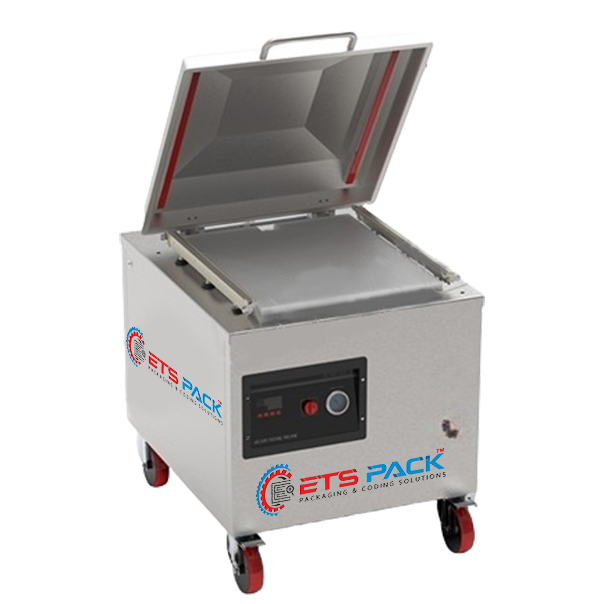

Horizontal Single Chamber Vacuum Packaging Machine

Model No: HSC600
SEALING LENGTH 600mm
SEALING WIDTH 10mm
SEALING BARS 2nos
CHAMBER SIZE L600mm X W500mm X H100mm
MACHINE CYCLE TIME 20-40SEC
CONTROLLER TIMER BASED
CONTROL CABLES RR CABLES
SWITCHGEAR Schneider
POWER SUPPLY 1 Phase 230v 50 Hz
POWER KW 1.5 kw
MACHINE WEIGHT 150KG
PUMP CAPACITY 16 m3/hr. (INDIAN MAKE)
MACHINE DIMENSIONS L725 X W960 X H850mm
MACHINE MOC SS 304
  • Heavy Duty single chamber vacuum packing machine model with easy moveable wheels, 2 wheel lockable for steadiness.
  • Design suitable for medium scale production up to 5kg retail packing
  • Heavy-duty SS top.
  • Rema Make Timer Base Control Panel for Easy adjustment of Vacuum Time, Gas Flushing Time & Sealing Time.
  • Stainless steel body, no sharp edges, use cast aluminium & other nonferrous materials to safe rust issue and easy cleaning.
  • Insert gas flushing unit.
  • Vacuum & gas control by sensor for accurate level.
  • BUSCH or Becker (German Make) Vacuum Pump.
  • Mould and Formers as per require pack size.
  • Cut out of toughened glass to view the packaging process from the top.
