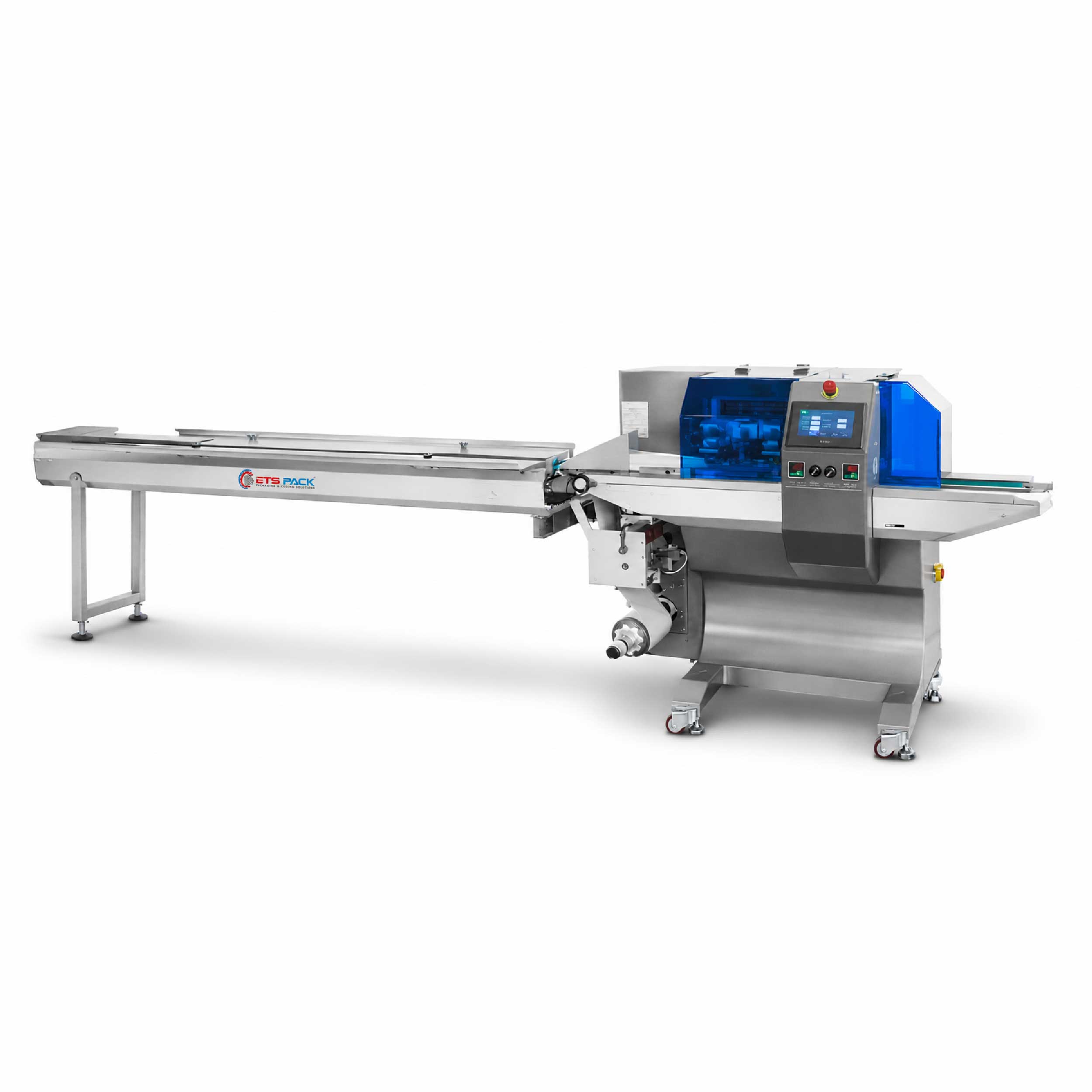

Horizontal Flow Wrap Machine (3 Servo)
| ETS-350 HFWN | 340 mm rim width; 90-6000 mm bag-making length; 50-150 mm bag-making width; 320 mm roll diameter; 40/60 mm product height; 2.8 kW; 450 kg |
|---|---|
| ETS-450 HFWN | 440 mm rim width; 150-6000 mm bag-making length; 50-200 mm bag-making width; 320 mm roll diameter; 100 mm product height; 2.8 kW; 420 kg |
| Roll Film and Thickness | OPP composite film, 0.03-0.06 mm |
| Voltage | AC 220 V, 50 Hz, 1 Phase |
| Machine Size | 3744 x 828 x 1100 mm |
| Infeed Line | Belt type / hook type |
Product Description
A three-servo horizontal flow wrapping machine with PLC control, accurate sealing-position tracking and a simple, reliable transmission system.
- Three servo motors and PLC control; one-step bag-length positioning saves time and film without adjusting air travel.
- Anti-aircraft bag function with automatic material packaging and no-material waiting status.
- Fault self-diagnosis with a clear fault display.
- High-sensitivity photoelectric eye colour tracking with digital sealing-position input.
- Independent PID temperature control for different packaging materials.
- Positioning and shutdown function avoids sticking the knife and wasting the envelope.
- Simple, reliable transmission system with convenient maintenance.
- Software-based controls make function adjustment and technology upgrades easier.
