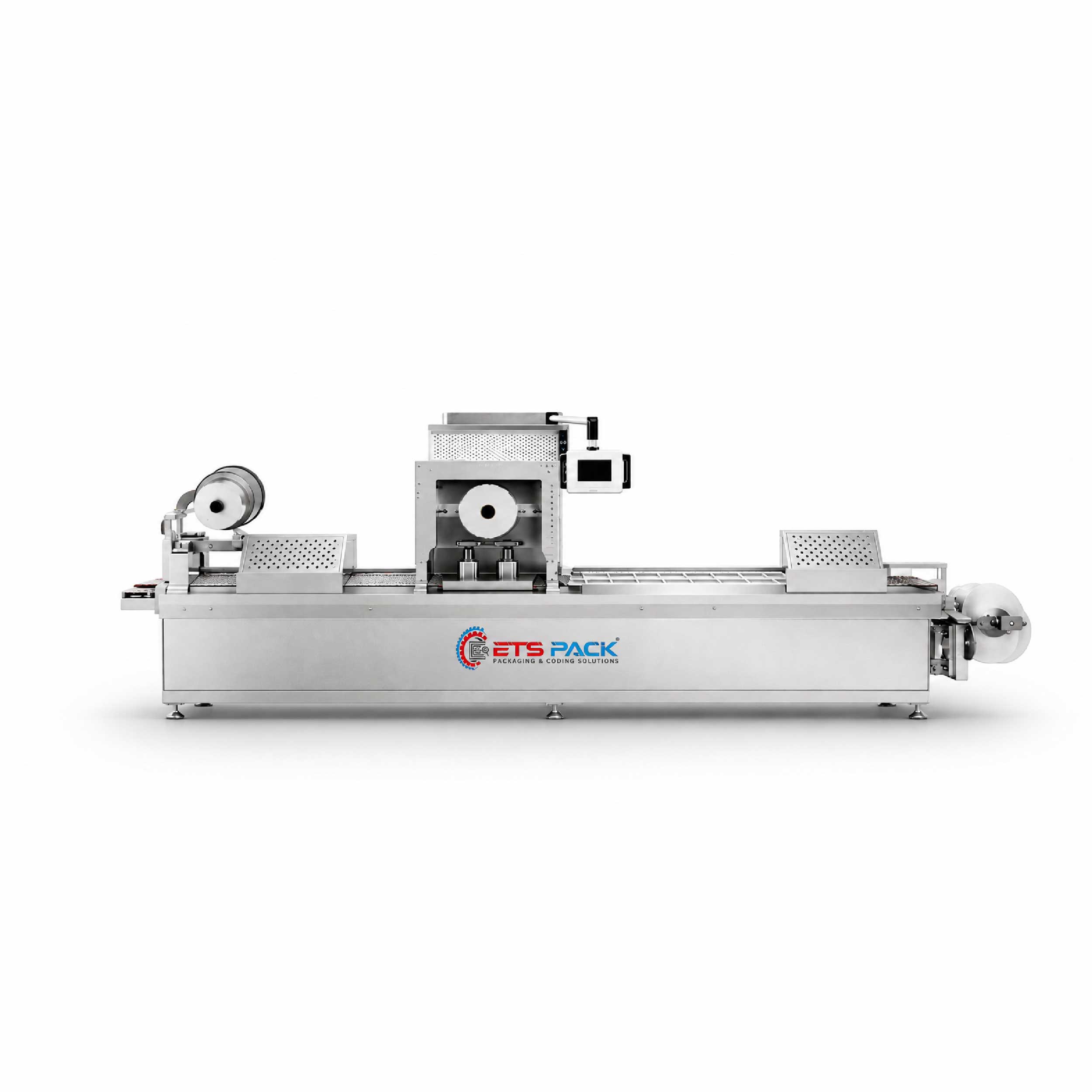

Fully Automatic Thermoforming Vacuum Packing Machine
| RTFM-320 | 295 mm top sealing film; 322 mm bottom forming film; 13 kW; 4 cycles/min; 5000 x 1000 x 1850 mm; 100 m3/hr Backer German vacuum pump |
|---|---|
| RTFM-420 | 395 mm top sealing film; 422 mm bottom forming film; 18 kW; 4-8 cycles/min; 6000 x 1100 x 1850 mm; 100/200 m3/hr Backer German vacuum pump |
| RTFM-520 | 495 mm top sealing film; 522 mm bottom forming film; 25 kW; 4-8 cycles/min; 8000 x 1200 x 1850 mm; 100/200/300 m3/hr Backer German vacuum pump |
| RTFM-680 | 657 mm top sealing film; 682 mm bottom forming film; 30 kW; 4-8 cycles/min; 10000 x 1200 x 1850 mm; 100/200/300 m3/hr Backer German vacuum pump |
| Power Supply | 3 Phase, 415 VAC, 50 Hz |
| Compressed Air | > 0.6 MPa |
| Cooling Water | > 0.15 MPa |
| Vacuum Degree | < 0.1 mbar |
| Control Panel | 270-degree rotation with push-pull; Siemens German PLC and HMI with 10-inch touch screen |
| Servo Gear Motor and Controller | Siemens German |
| Photo Electric Sensor | Banner USA |
| Film Gripper Chain | TYC Taiwan make |
| Switch Gears | Schneider |
| Pneumatic Cylinders | SMC Japan |
| Film Scrap Winding System | Yes |
| Air Shaft for Roll Mounting | Yes |
| Machine Construction | SS304 body and aluminium die parts |
Product Description
REMA Engineers make thermoforming packaging machines for automated, high-efficiency packaging using flexible or rigid bottom film. Designed for food, seafood, meat, medical and industrial applications, the machines support vacuum packaging, Modified Atmosphere Packaging (MAP) and Vacuum Skin Packaging (VSP) to help extend shelf life, enhance food safety and enable cost-effective large-scale production.
- Supports vacuum packing, Modified Atmosphere Packaging (MAP), vacuum skin packaging and sealing-only applications.
- Siemens PLC and HMI with 10-inch touch screen.
- SS304 body with aluminium die parts.
- Chain-driven machine suitable for fresh meat, poultry, seafood, cheese, dairy and bakery products.
- Designed for rigid and flexible bottom films with packaging speeds up to 4-8 cycles per minute.
